USB GDROM SMC replacement
Hi!

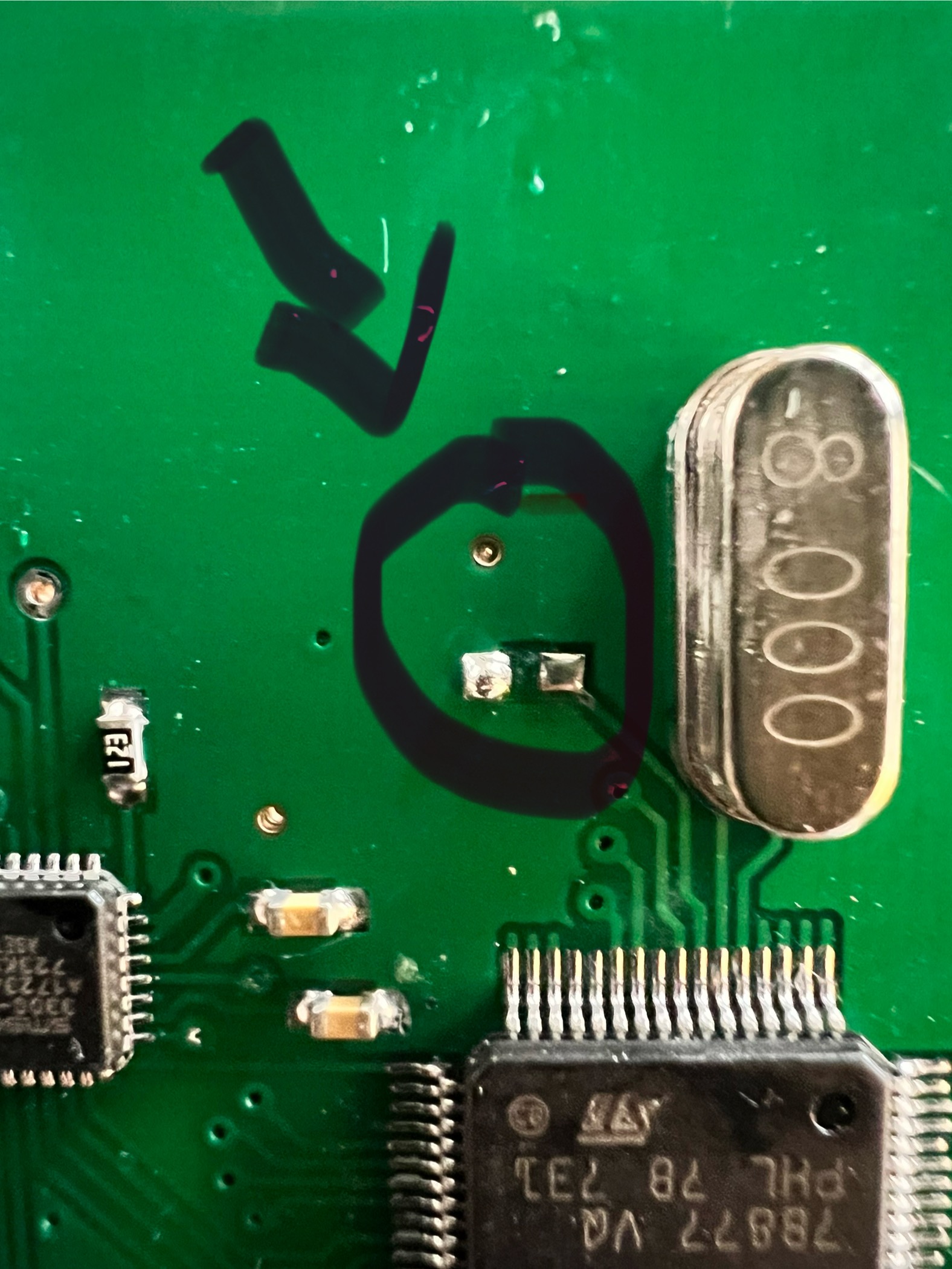

I was soldering the reset wire from the DCDIGITAL to the SMC on the USBGDROM board. This is according to the DCDIGITAL installation instructions. Unfortunately the SMC got damaget. I've removed it and cleaned up the pads. I believe it is a 1206 capacitor. I would like to replace the damaged component and I wonder if anyone knows more about the component?
I was soldering the reset wire from the DCDIGITAL to the SMC on the USBGDROM board. This is according to the DCDIGITAL installation instructions. Unfortunately the SMC got damaget. I've removed it and cleaned up the pads. I believe it is a 1206 capacitor. I would like to replace the damaged component and I wonder if anyone knows more about the component?
Live long and prosper
-
