Well, after some pretty basic testing I've ended up with the same result as @Ant2no78. I'm running DCHDMI HW1 in 1080P for these images.fraggle200 wrote:lemme check on my lunch break.ateam wrote:Interesting, my experience is quite different. If anything, they look nearly identical, as DCDigital is taking the 240p input in "cable select" mode and scaling it up per your resolution settings. Meanwhile, the VGA patch (I believe) is just line-doubling 240p to 480p, after which DCDigital would scale that up per your resolution settings.Ant2no78 wrote:Unfortunately kof evolution looks very washed out in vga via dchdmi.
When running the original through dchdmi (cable select) it looks clearer.
Even if I'm wrong about the line-doubling, it doesn't make much sense that you're seeing such a discrepancy. I'd be curious to hear if anyone else has the same experience as you.

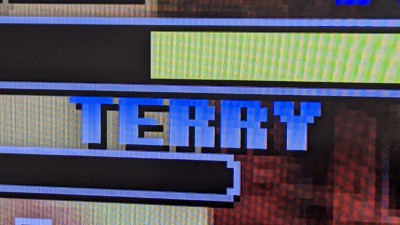

Here's the VGA output

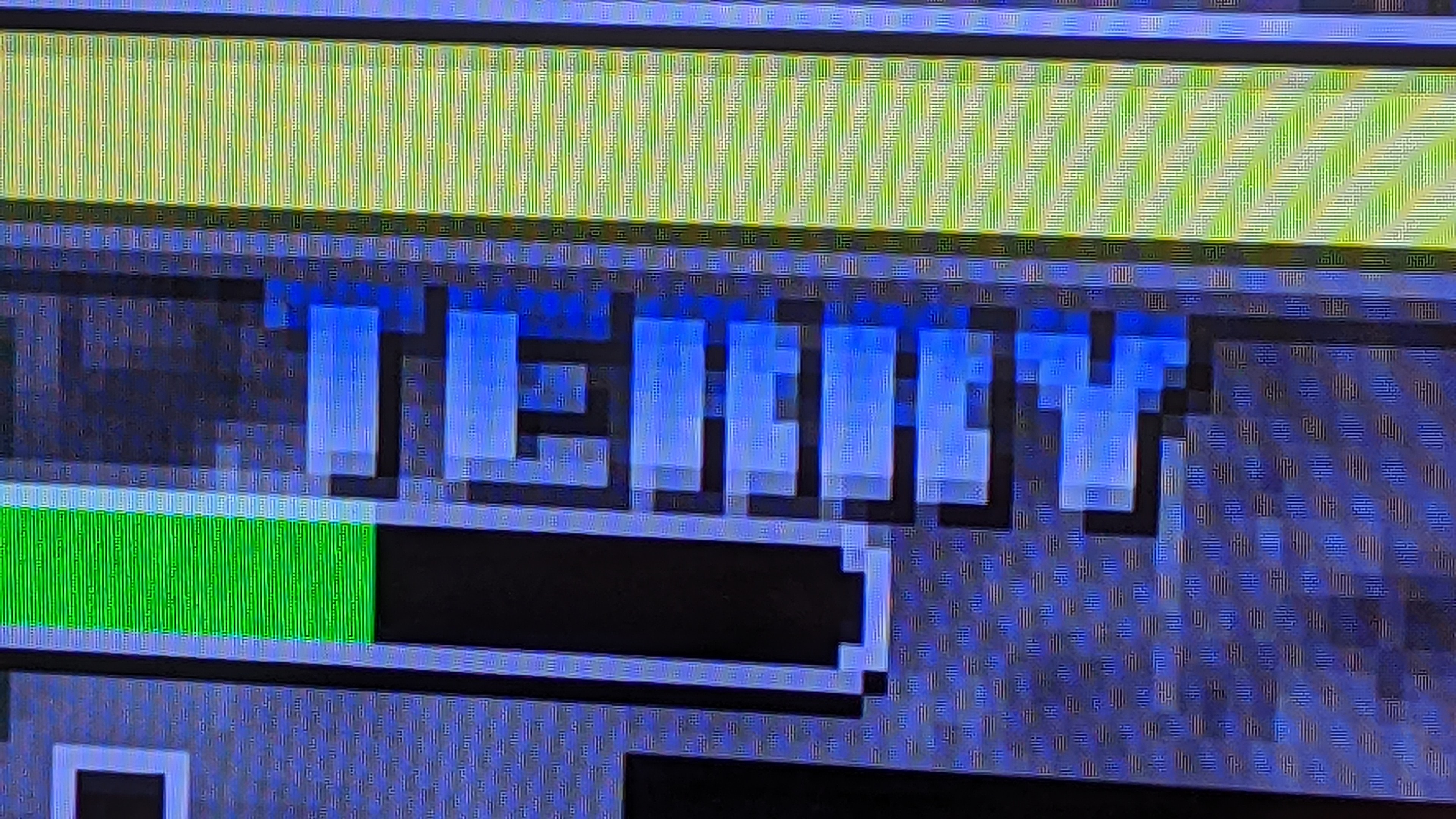

Here's the Cable Select output
Maybe it's just my eyes but with the Cable Select mode selected you get the raw pixels, which is what I'd have thought we would have got with VGA. Looks like there's some sort of filtering happening to the VGA signal as it's fuzzy/washed out, for the lack of a better term. Looks like in "Terry", we're starting to lose the top and bottom of the lettering when in VGA, compared to Cable Select.
