How To: Get Online with DreamPi

Post#1 » Wed Apr 20, 2016 8:00 am


What is DreamPi?

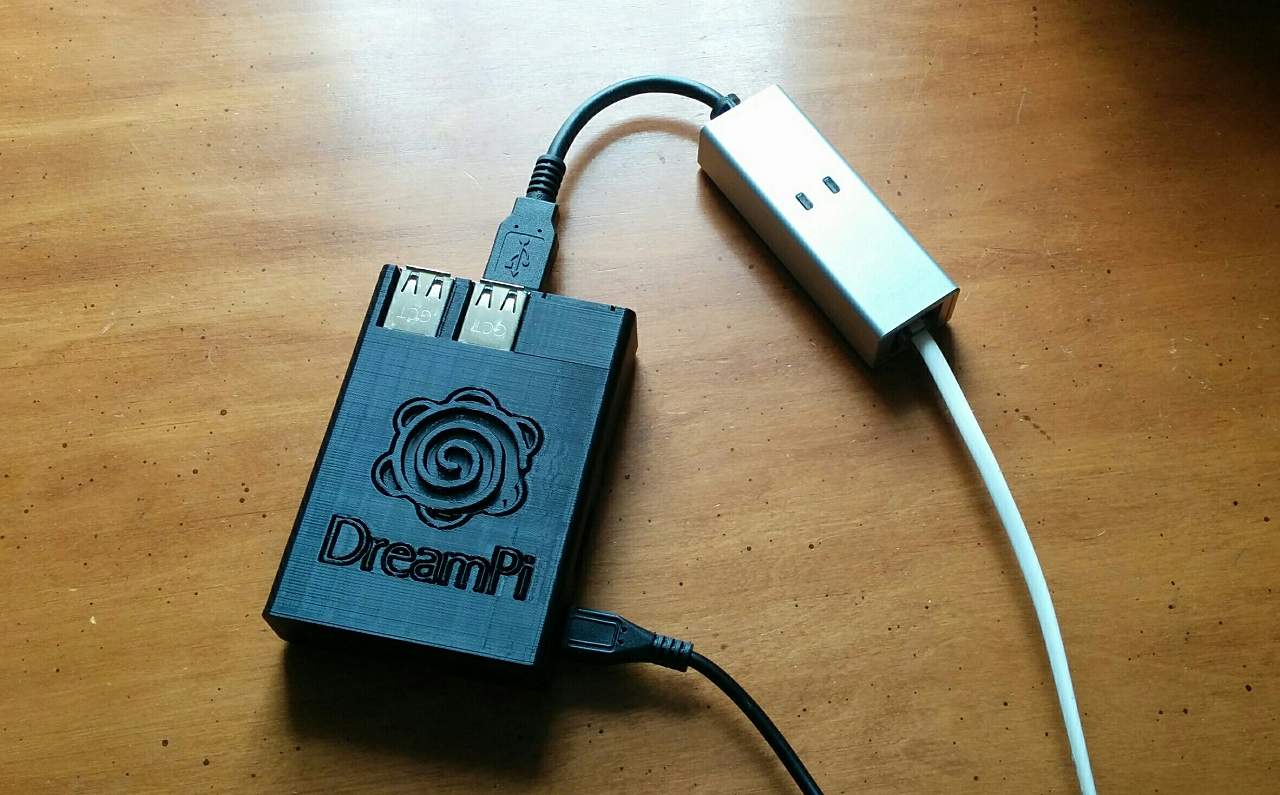

DreamPi is custom software for the Raspberry Pi mini computer that was created by Luke Benstead a.k.a Kazade. It transforms your existing high-speed internet service into a dial-up connection that can be used by your Dreamcast. While there have been other methods of doing this in the past, DreamPi is by far the easiest and cheapest method. It's also a lot more polished and streamlined than the other methods and includes a service called Dreamcast Now that allows you to see when other DreamPi users are online and what they're playing. Once you're online with DreamPi, you'll be able to play any of the currently online Dreamcast games as well as browse the web using PlanetWeb, Dreamkey, or XDP.

What you'll need:

1x Raspberry Pi (Any model with an Ethernet port)
1x Linux-Compatible USB Voice Modem (e.g. Dell NW147)
1x Line Voltage Inducer (or) 1x Telephone Line Simulator (e.g. Viking DLE-200B)
1x 4GB or Larger SD or MicroSD Card (The Raspberry Pi 1 uses a standard SD card and the Raspberry Pi 2 & 3 use MicroSD)
1x RJ-45 Ethernet Cable
1x Micro USB Cable
1x RJ-11 Phone Cable (2 if you're using a telephone line simulator)
1x HDMI Cable (Optional)

Line voltage inducer parts:
(You can purchase a line voltage inducer from here if you don't want to build one yourself.)

1x 0.47uf - 1uf Electrolytic Capacitor
1x 330 Ohm - 390 Ohm Resistor
1x 9v Battery Connector (2 if you're using a PAL Dreamcast)

This is what the line voltage inducer should look like after you're finished soldering:

CjAEE0jWkAA74pL.jpg large.jpg


Video tutorial:



Chapter index:

0:55 - The Parts
2:39 - Building a Line Voltage Inducer
4:40 - Installing the DreamPi Image
7:22 - Hooking Everything Up
8:50 - Dreamcast Configuration
10:11 - Dreamcast Now

Installing the DreamPi image using another OS:

Mac: https://www.raspberrypi.org/documentati ... ges/mac.md
Mac Option B: viewtopic.php?f=3&t=8263&start=70#p96042
Linux: https://www.raspberrypi.org/documentati ... s/linux.md

Configuring Wi-Fi for use with DreamPi:

Last edited by pcwzrd13 on Wed Nov 30, 2016 12:39 pm, edited 10 times in total.
PSO Characters:
Teal'c - lvl 119 HUcast - GC# 11666
Alto - lvl 39 FOnewm - GC# 12964

YouTube Channel : Dreamcast Live

User avatar
jial
lithium
Posts: 46

Re: How To: Get Online with DreamPi

Post#2 » Wed Apr 20, 2016 8:15 am

Thank you for the tutorial, it will be useful for me :)

User avatar
pcwzrd13
Seen Any Sailors?
Posts: 4672
Contact:

Re: How To: Get Online with DreamPi

Post#3 » Wed Apr 20, 2016 8:31 am

jial wrote:Thank you for the tutorial, it will be useful for me :)


Not a problem! DreamPi is quite easy to set up anyway but I figured I might as well make a video tutorial to make it even easier! :D
PSO Characters:
Teal'c - lvl 119 HUcast - GC# 11666
Alto - lvl 39 FOnewm - GC# 12964

YouTube Channel : Dreamcast Live

User avatar
jial
lithium
Posts: 46

Re: How To: Get Online with DreamPi

Post#4 » Wed Apr 20, 2016 8:38 am

Yes , it´s very visual. I´m trying to build a voltage inducer for a pal dreamcast and I was not sure how the wires are connected. ;)

User avatar
pcwzrd13
Seen Any Sailors?
Posts: 4672
Contact:

Re: How To: Get Online with DreamPi

Post#5 » Wed Apr 20, 2016 8:52 am

jial wrote:Yes , it´s very visual. I´m trying to build a voltage inducer for a pal dreamcast and I was not sure how the wires are connected. ;)


Here's an example of what it should look like when you're done (just don't use scotch tape lol):



You'll need two battery connectors for a PAL Dreamcast though. Just link them together as shown in the video.
PSO Characters:
Teal'c - lvl 119 HUcast - GC# 11666
Alto - lvl 39 FOnewm - GC# 12964

YouTube Channel : Dreamcast Live

User avatar
Nico0020
MegaDeath
Posts: 221

Re: How To: Get Online with DreamPi

Post#6 » Thu Apr 21, 2016 10:07 am

This was an excellent video. I really hope we can see those line voltage boards from Kazade sometime soon. I am still BBA only, but will be building one of these in the future.

User avatar
pcwzrd13
Seen Any Sailors?
Posts: 4672
Contact:

Re: How To: Get Online with DreamPi

Post#7 » Thu Apr 21, 2016 11:02 am

Nico0020 wrote:This was an excellent video. I really hope we can see those line voltage boards from Kazade sometime soon. I am still BBA only, but will be building one of these in the future.


Thank you! :) The USB line voltage inducers should happen at some point. It's one of about a thousand things on Luke's to-do list. :lol:
PSO Characters:
Teal'c - lvl 119 HUcast - GC# 11666
Alto - lvl 39 FOnewm - GC# 12964

YouTube Channel : Dreamcast Live

User avatar
RXShorty
dark night
Posts: 52

Re: How To: Get Online with DreamPi

Post#8 » Thu Apr 21, 2016 11:16 am

I own a BBA but with the DreamPi I can connect to more games, correct?
DreamOn!

User avatar
pcwzrd13
Seen Any Sailors?
Posts: 4672
Contact:

Re: How To: Get Online with DreamPi

Post#9 » Thu Apr 21, 2016 11:26 am

RXShorty wrote:I own a BBA but with the DreamPi I can connect to more games, correct?


Correct. The broadband adapter is only supported by three games of the ones currently online. You can see a list of games and the connection methods they support here.
PSO Characters:
Teal'c - lvl 119 HUcast - GC# 11666
Alto - lvl 39 FOnewm - GC# 12964

YouTube Channel : Dreamcast Live

User avatar
RXShorty
dark night
Posts: 52

Re: How To: Get Online with DreamPi

Post#10 » Thu Apr 21, 2016 11:31 am

Sweet thanks! :)
Going to setup my Pi for DreamPi.
DreamOn!
